Overhead door NA
Not swinging out. Elegant. Safe.
Our patented overhead door NA remains at the façade level. For more freedom of movement and safety in front of the entrance. For a uniform appearance.
For your individual project.

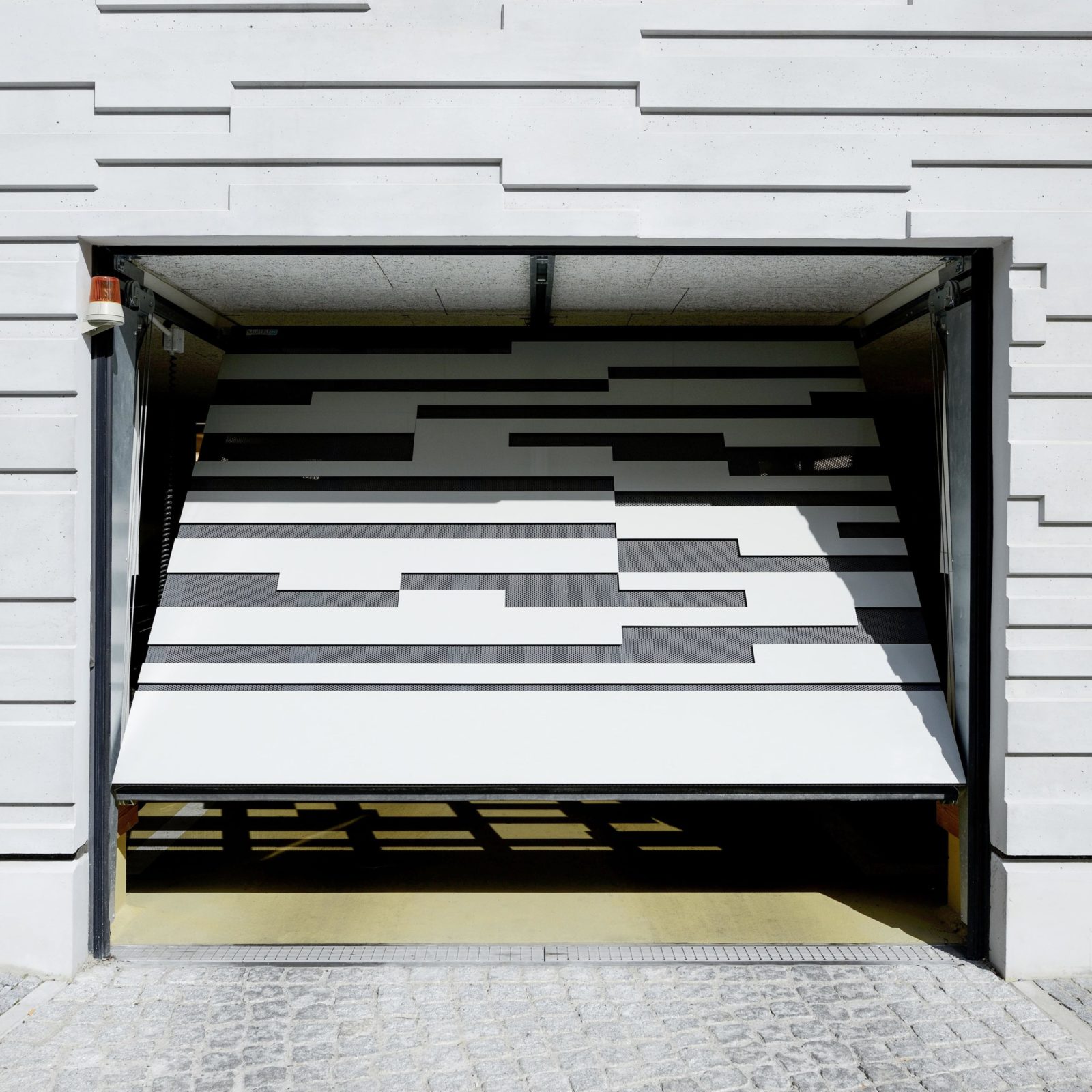

TheNA up-and-over door does not swing beyond the door level during the opening and closing process. This makes it ideal for multi-storey car parks with limited space in the entrance area. Added to this is its aluminium frame construction. This makes the door particularly low-wear and low-noise. And it allows customised installation and design options to suit your architectural concept.
The unique tilt door NA advantages
elegant
Completely new design possibilities thanks to the lightweight construction and the door running at façade level
safe
More freedom of movement and safety in narrow entrance areas - such as directly adjacent footpaths
Innovative
User-friendly
Customised
- Integration of the spring system into the frame
- Innovative weight equalisation with special gas pressure spring system
- Space-saving due to the absence of torsion springs or counterweights
Colours and surfaces

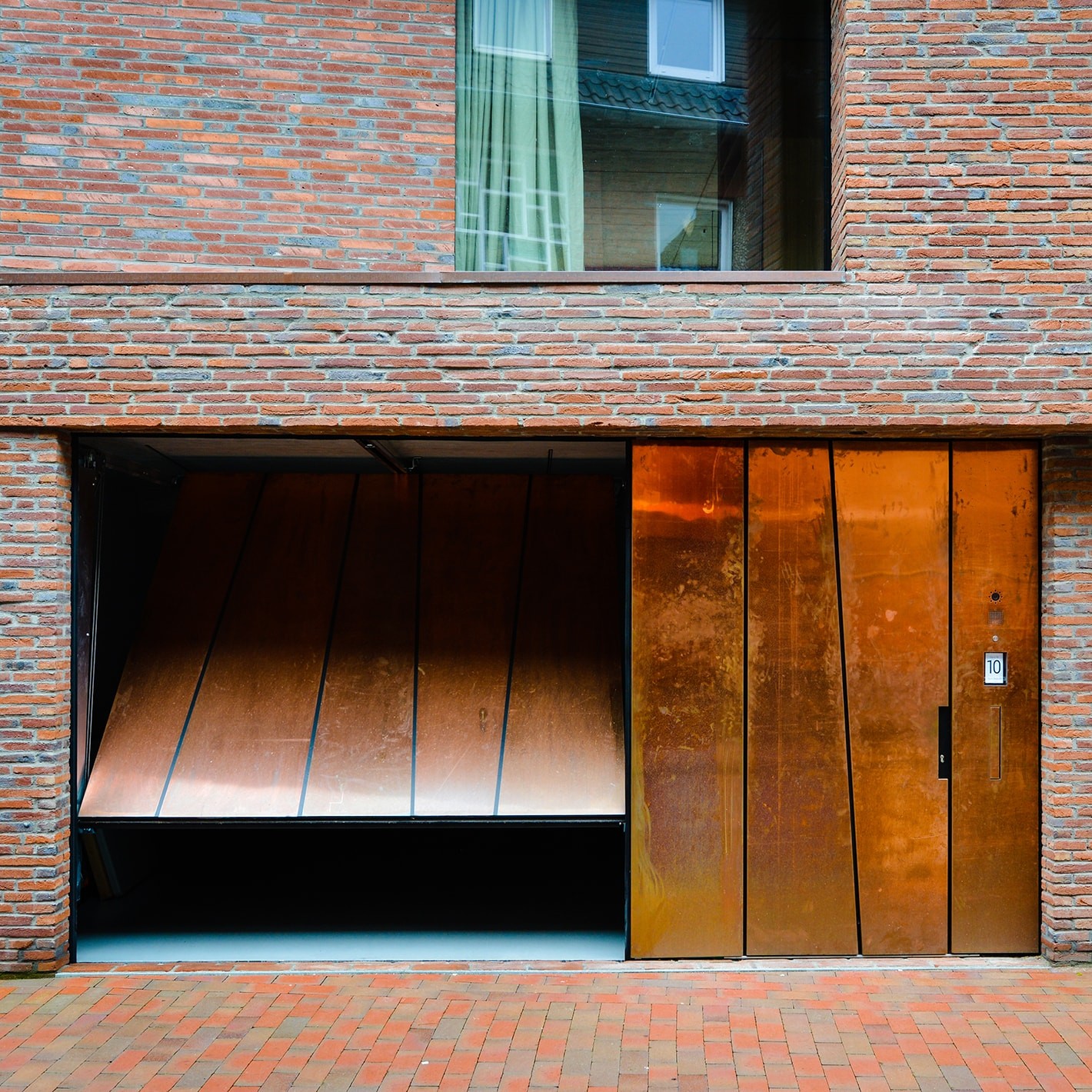

When building the doors, we focus entirely on your ideas so that you can perfectly match all surfaces and colours of door panels or door coverings to your building. We also offer numerous examples of tried and tested solutions. The choice is yours.
Proven solutions
The following sample door panels are available as standard in E6/EV1 anodised finish (sash profile / cover plate). Beaded sheet coverings are galvanised as standard. Of course, all profiles, infills and coverings can be coated in all RAL, DB and other special colours.
Fillings
Door leaf: Aluminium frame construction
Infill: Perforated aluminium sheet RV 5/8
Ventilation cross-section filling: approx. 35 %
Infill: Perforated aluminium sheet RV 5/8
Ventilation cross-section filling: approx. 35 %
CIRCULAR SHEET
Door leaf: Aluminium frame construction
Filling: Smooth aluminium sheet
Ventilation cross-section filling: 0 %
Filling: Smooth aluminium sheet
Ventilation cross-section filling: 0 %
SHEET METAL
Door leaf: Aluminium frame construction
Filling: aluminium square tube 20 x 20 mm
Ventilation cross-section filling: approx. 70 %
Filling: aluminium square tube 20 x 20 mm
Ventilation cross-section filling: approx. 70 %
STABGRID
Door leaf: Aluminium frame construction
Filling: Aluminium expanded metal mesh
Ventilation cross-section filling: approx. 74 %
Filling: Aluminium expanded metal mesh
Ventilation cross-section filling: approx. 74 %
EXPANDED METAL MESH
Coverings
Door leaf: Aluminium frame construction
Filling: Perforated steel sheet RV 5/7
Ventilation cross-section filling: approx. 45 %
Filling: Perforated steel sheet RV 5/7
Ventilation cross-section filling: approx. 45 %
PERFORATED BEAD PLATE
Door leaf: Aluminium frame construction
Filling: corrugated sheet steel
Ventilation cross-section filling: 0 %
Filling: corrugated sheet steel
Ventilation cross-section filling: 0 %
SICKENBLECH
Technical details
Our doors can be adapted to a wide variety of installation situations and fitted with a wide range of accessories.
To make it easier for you to plan your individual door, we have summarised the most important installation dimensions and components here:
KÄUFERLE WORKBOOKS
In our Käuferle Workbooks, we offer architects, planners and builders an overview of our diverse product range and our comprehensive services. So that you are always well informed.
KÄUFERLE GARAGE DOOR SERVICE
Käuferle offers an all-round door service for the maintenance and repair of collective garage doors throughout Germany. With specially trained specialists and original spare parts. So that your door always runs smoothly.
